| Electrical and Mechanical details | |
| Motor Mass: | 12 kg |
| Continuous power : | 50 kW (4000 rpm ) |
| Peak Power : | 75 kW (4000 rpm) |
| Continues Torque : | 120 Nm |
| Peak Torque : | 180 Nm1 |
| KV : | 11, 22 rpm/V |
| DC Voltage : | 400V, 200V |
| Enviroment protection : | IP65 |
| Sensor : | encoder |
| Cooling system: | liquid |
50 kW liquid-cooled electric motor
€5,000.00
50 kW continuous power fully sealed IP65 PMSM motor with liquid sooling system. Ideal for big drone and marine applications, and offering a custom voltage range from 200V to 400V. 1-year warranty.
Out of stock. Made to order. Production time is approximately 2 months.
Details
Specification sheet
| Weight | 12 kg |
|---|---|
| KV (rpm/V) | 11, 22 |
Related products
- KV 4.3
- KV 8.6
50 kW air-cooled electric motor
€4,000.00 Select options This product has multiple variants. The options may be chosen on the product page
- KV 12
- KV 6
170 kW liquid-cooled electric motor
€11,000.00 Select options This product has multiple variants. The options may be chosen on the product page
- KV 20
- KV 40
- KV 80
3 kW air-cooled electric motor
€1,000.00 Select options This product has multiple variants. The options may be chosen on the product page
- KV 4
- KV 8
13 kW air-cooled electric motor
€2,500.00 Select options This product has multiple variants. The options may be chosen on the product page
- KV 10
- KV 5
20 kW air-cooled electric motor
€3,000.00 Select options This product has multiple variants. The options may be chosen on the product page
- KV 17
- KV 34
- KV 8.5

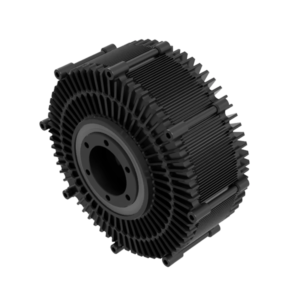

12 kW air-cooled electric motor
€2,000.00 Select options This product has multiple variants. The options may be chosen on the product page
- KV 24
- KV 48
- KV 96

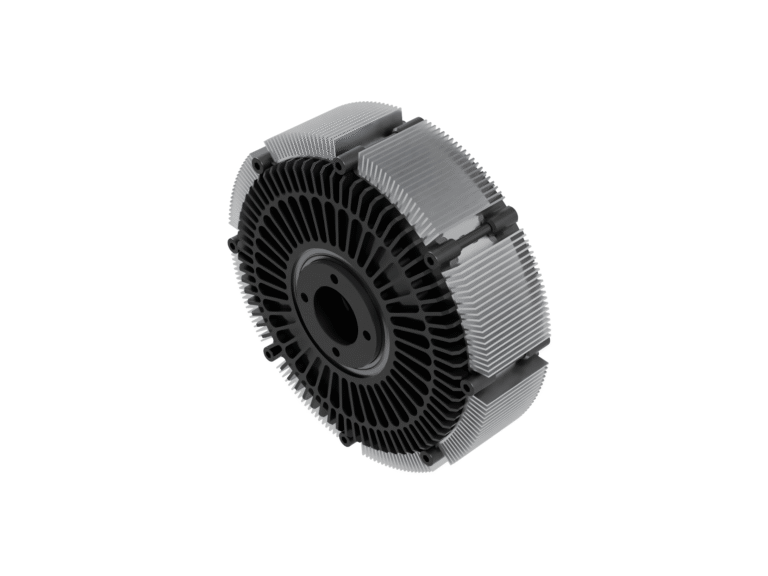

5 kW air-cooled electric motor
