| Electrical and Mechanical details | |
| Motor Mass: | 38 kg |
| Continuous power : | 170 kW (4000 rpm ) |
| Peak Power : | 250 kW (4000 rpm) |
| Continues Torque : | 670 Nm |
| Peak Torque : | 700 Nm1 |
| KV : | 6, 12 rpm/V |
| DC Voltage : | 400V, 800V |
| Enviroment protection : | IP65 |
| Sensor : | encoder |
| Cooling system: | liquid |

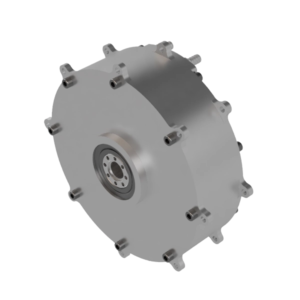

170 kW liquid-cooled electric motor
€11,000.00
110 kW continuous power fully sealed IP65 PMSM motor with liquid cooling system. Ideal for big drone and marine applications, and offering a custom voltage range from 400V to 800V. 1-year warranty.
Out of stock. Made to order. Production time is approximately 2 months.
Details
Specification sheet
| Weight | 38 kg |
|---|---|
| KV (rpm/V) | 12, 6 |
